docs: add integration guide for MCP Toolbox (#32344)
This PR introduces a new integration guide for MCP Toolbox. The primary goal of this new documentation is to enhance the discoverability of MCP Toolbox for developers working within the LangChain ecosystem, providing them with a clear and direct path to using our tools. This approach was chosen to provide users with a practical, hands-on example that they can easily follow. > [!NOTE] > The page added in this PR is linked to from a section in Google partners page added in #32356. --------- Co-authored-by: Lauren Hirata Singh <lauren@langchain.dev> Co-authored-by: Mason Daugherty <github@mdrxy.com> Co-authored-by: Mason Daugherty <mason@langchain.dev>
This commit is contained in:
Anubhav Dhawan
GitHub
parent
155e3740bc
commit
1e38fd2ce3
23
docs/docs/integrations/providers/toolbox-langchain.mdx
Normal file
23
docs/docs/integrations/providers/toolbox-langchain.mdx
Normal file
@ -0,0 +1,23 @@
|
||||
# MCP Toolbox
|
||||
|
||||
The [MCP Toolbox](https://googleapis.github.io/genai-toolbox/getting-started/introduction/) in LangChain allows you to equip an agent with a set of tools. When the agent receives a query, it can intelligently select and use the most appropriate tool provided by MCP Toolbox to fulfill the request.
|
||||
|
||||
## What is it?
|
||||
|
||||
MCP Toolbox is essentially a container for your tools. Think of it as a multi-tool device for your agent; it can hold any tools you create. The agent then decides which specific tool to use based on the user's input.
|
||||
|
||||
This is particularly useful when you have an agent that needs to perform a variety of tasks that require different capabilities.
|
||||
|
||||
## Installation
|
||||
|
||||
To get started, you'll need to install the necessary package:
|
||||
|
||||
```bash
|
||||
pip install toolbox-langchain
|
||||
```
|
||||
|
||||
## Tutorial
|
||||
|
||||
For a complete, step-by-step guide on how to create, configure, and use MCP Toolbox with your agents, please refer to our detailed Jupyter notebook tutorial.
|
||||
|
||||
**[➡️ View the full tutorial here](/docs/integrations/tools/toolbox)**.
|
||||
378
docs/docs/integrations/tools/toolbox.ipynb
Normal file
378
docs/docs/integrations/tools/toolbox.ipynb
Normal file
@ -0,0 +1,378 @@
|
||||
{
|
||||
"cells": [
|
||||
{
|
||||
"cell_type": "markdown",
|
||||
"id": "554b9f85",
|
||||
"metadata": {},
|
||||
"source": [
|
||||
"# MCP Toolbox for Databases\n",
|
||||
"\n",
|
||||
"Integrate your databases with LangChain agents using MCP Toolbox.\n",
|
||||
"\n",
|
||||
"## Overview\n",
|
||||
"\n",
|
||||

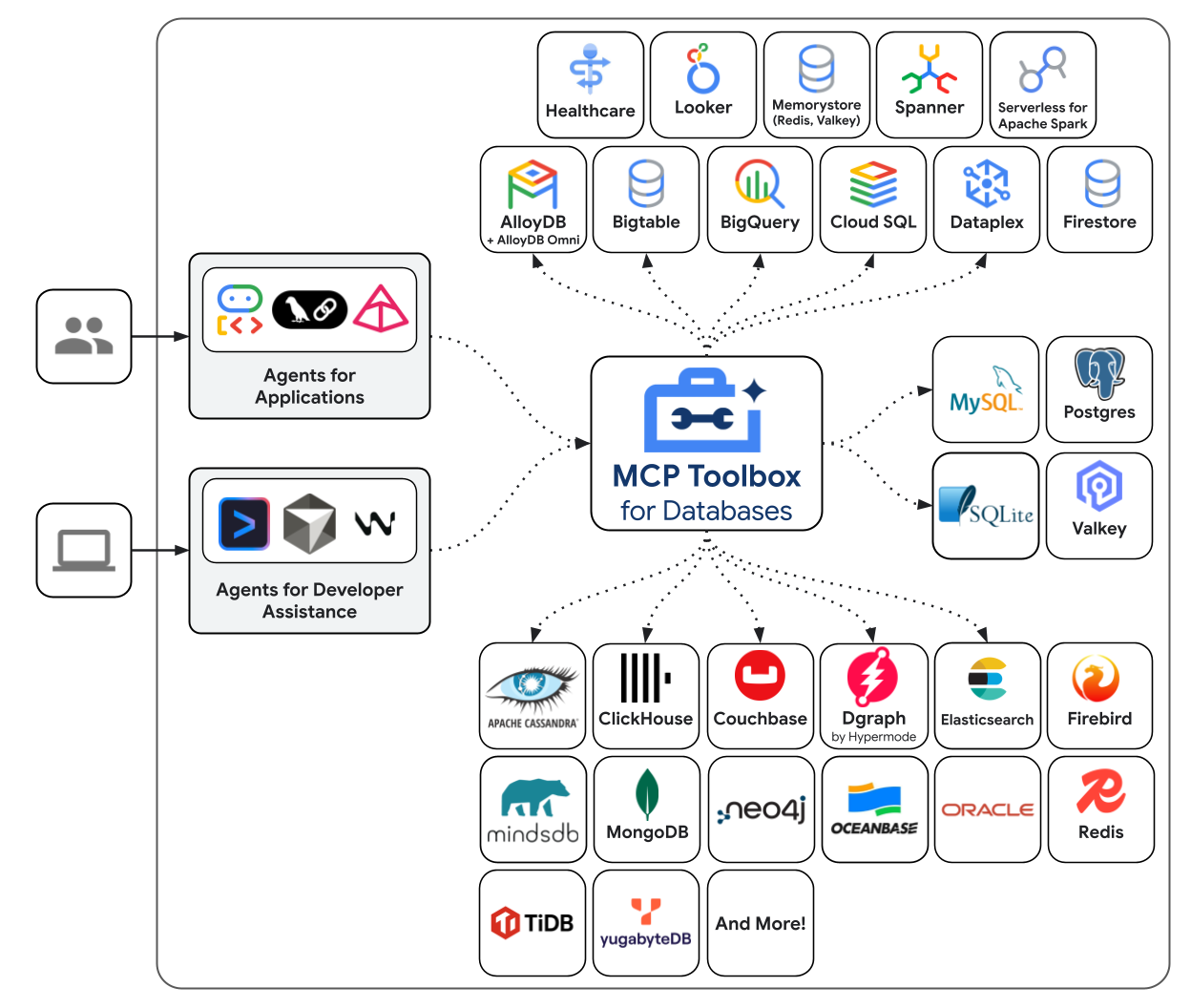

"[MCP Toolbox for Databases](https://github.com/googleapis/genai-toolbox) is an open source MCP server for databases. It was designed with enterprise-grade and production-quality in mind. It enables you to develop tools easier, faster, and more securely by handling the complexities such as connection pooling, authentication, and more.\n",
|
||||
"\n",
|
||||
"Toolbox Tools can be seemlessly integrated with Langchain applications. For more\n",
|
||||
"information on [getting\n",
|
||||
"started](https://googleapis.github.io/genai-toolbox/getting-started/local_quickstart/) or\n",
|
||||
"[configuring](https://googleapis.github.io/genai-toolbox/getting-started/configure/)\n",
|
||||
"MCP Toolbox, see the\n",
|
||||
"[documentation](https://googleapis.github.io/genai-toolbox/getting-started/introduction/).\n",
|
||||
"\n",
|
||||
""
|
||||
]
|
||||
},
|
||||
{
|
||||
"cell_type": "markdown",
|
||||
"id": "788ff64c",
|
||||
"metadata": {},
|
||||
"source": [
|
||||
"## Setup\n",
|
||||
"\n",
|
||||
"This guide assumes you have already done the following:\n",
|
||||
"\n",
|
||||
"1. Installed [Python 3.9+](https://wiki.python.org/moin/BeginnersGuide/Download) and [pip](https://pip.pypa.io/en/stable/installation/).\n",
|
||||
"2. Installed [PostgreSQL 16+ and the `psql` command-line client](https://www.postgresql.org/download/)."
|
||||
]
|
||||
},
|
||||
{
|
||||
"cell_type": "markdown",
|
||||
"id": "4847d196",
|
||||
"metadata": {},
|
||||
"source": [
|
||||
"### 1. Setup your Database\n",
|
||||
"\n",
|
||||
"First, let's set up a PostgreSQL database. We'll create a new database, a dedicated user for MCP Toolbox, and a `hotels` table with some sample data.\n",
|
||||
"\n",
|
||||
"Connect to PostgreSQL using the `psql` command. You may need to adjust the command based on your PostgreSQL setup (e.g., if you need to specify a host or a different superuser).\n",
|
||||
"\n",
|
||||
"```bash\n",
|
||||
"psql -U postgres\n",
|
||||
"```\n",
|
||||
"\n",
|
||||
"Now, run the following SQL commands to create the user, database, and grant the necessary permissions:\n",
|
||||
"\n",
|
||||
"```sql\n",
|
||||
"CREATE USER toolbox_user WITH PASSWORD 'my-password';\n",
|
||||
"CREATE DATABASE toolbox_db;\n",
|
||||
"GRANT ALL PRIVILEGES ON DATABASE toolbox_db TO toolbox_user;\n",
|
||||
"ALTER DATABASE toolbox_db OWNER TO toolbox_user;\n",
|
||||
"```\n",
|
||||
"\n",
|
||||
"Connect to your newly created database with the new user:\n",
|
||||
"\n",
|
||||
"```sql\n",
|
||||
"\\c toolbox_db toolbox_user\n",
|
||||
"```\n",
|
||||
"\n",
|
||||
"Finally, create the `hotels` table and insert some data:\n",
|
||||
"\n",
|
||||
"```sql\n",
|
||||
"CREATE TABLE hotels(\n",
|
||||
" id INTEGER NOT NULL PRIMARY KEY,\n",
|
||||
" name VARCHAR NOT NULL,\n",
|
||||
" location VARCHAR NOT NULL,\n",
|
||||
" price_tier VARCHAR NOT NULL,\n",
|
||||
" booked BIT NOT NULL\n",
|
||||
");\n",
|
||||
"\n",
|
||||
"INSERT INTO hotels(id, name, location, price_tier, booked)\n",
|
||||
"VALUES \n",
|
||||
" (1, 'Hilton Basel', 'Basel', 'Luxury', B'0'),\n",
|
||||
" (2, 'Marriott Zurich', 'Zurich', 'Upscale', B'0'),\n",
|
||||
" (3, 'Hyatt Regency Basel', 'Basel', 'Upper Upscale', B'0');\n",
|
||||
"```\n",
|
||||
"You can now exit `psql` by typing `\\q`."
|
||||
]
|
||||
},
|
||||
{
|
||||
"cell_type": "markdown",
|
||||
"id": "855133f8",
|
||||
"metadata": {},
|
||||
"source": [
|
||||
"### 2. Install MCP Toolbox\n",
|
||||
"\n",
|
||||
"Next, we will install MCP Toolbox, define our tools in a `tools.yaml` configuration file, and run the MCP Toolbox server.\n",
|
||||
"\n",
|
||||
"For **macOS** users, the easiest way to install is with [Homebrew](https://formulae.brew.sh/formula/mcp-toolbox):\n",
|
||||
"\n",
|
||||
"```bash\n",
|
||||
"brew install mcp-toolbox\n",
|
||||
"```\n",
|
||||
"\n",
|
||||
"For other platforms, [download the latest MCP Toolbox binary for your operating system and architecture.](https://github.com/googleapis/genai-toolbox/releases)\n",
|
||||
"\n",
|
||||
"Create a `tools.yaml` file. This file defines the data sources MCP Toolbox can connect to and the tools it can expose to your agent. For production use, always use environment variables for secrets.\n",
|
||||
"\n",
|
||||
"```yaml\n",
|
||||
"sources:\n",
|
||||
" my-pg-source:\n",
|
||||
" kind: postgres\n",
|
||||
" host: 127.0.0.1\n",
|
||||
" port: 5432\n",
|
||||
" database: toolbox_db\n",
|
||||
" user: toolbox_user\n",
|
||||
" password: my-password\n",
|
||||
"\n",
|
||||
"tools:\n",
|
||||
" search-hotels-by-location:\n",
|
||||
" kind: postgres-sql\n",
|
||||
" source: my-pg-source\n",
|
||||
" description: Search for hotels based on location.\n",
|
||||
" parameters:\n",
|
||||
" - name: location\n",
|
||||
" type: string\n",
|
||||
" description: The location of the hotel.\n",
|
||||
" statement: SELECT id, name, location, price_tier FROM hotels WHERE location ILIKE '%' || $1 || '%';\n",
|
||||
" book-hotel:\n",
|
||||
" kind: postgres-sql\n",
|
||||
" source: my-pg-source\n",
|
||||
" description: >-\n",
|
||||
" Book a hotel by its ID. If the hotel is successfully booked, returns a confirmation message.\n",
|
||||
" parameters:\n",
|
||||
" - name: hotel_id\n",
|
||||
" type: integer\n",
|
||||
" description: The ID of the hotel to book.\n",
|
||||
" statement: UPDATE hotels SET booked = B'1' WHERE id = $1;\n",
|
||||
"\n",
|
||||
"toolsets:\n",
|
||||
" hotel_toolset:\n",
|
||||
" - search-hotels-by-location\n",
|
||||
" - book-hotel\n",
|
||||
"```\n",
|
||||
"\n",
|
||||
"Now, in a separate terminal window, start the MCP Toolbox server. If you installed via Homebrew, you can just run `toolbox`. If you downloaded the binary manually, you'll need to run `./toolbox` from the directory where you saved it:\n",
|
||||
"\n",
|
||||
"```bash\n",
|
||||
"toolbox --tools-file \"tools.yaml\"\n",
|
||||
"```\n",
|
||||
"\n",
|
||||
"MCP Toolbox will start on `http://127.0.0.1:5000` by default and will hot-reload if you make changes to your `tools.yaml` file."
|
||||
]
|
||||
},
|
||||
{
|
||||
"cell_type": "markdown",
|
||||
"id": "b9b2f041",
|
||||
"metadata": {},
|
||||
"source": [
|
||||
"## Instantiation"
|
||||
]
|
||||
},
|
||||
{
|
||||
"cell_type": "code",
|
||||
"execution_count": null,
|
||||
"id": "d4c31f3b",
|
||||
"metadata": {},
|
||||
"outputs": [],
|
||||
"source": [
|
||||
"!pip install toolbox-langchain"
|
||||
]
|
||||
},
|
||||
{
|
||||
"cell_type": "code",
|
||||
"execution_count": null,
|
||||
"id": "14a68a49",
|
||||
"metadata": {},
|
||||
"outputs": [],
|
||||
"source": [
|
||||
"from toolbox_langchain import ToolboxClient\n",
|
||||
"\n",
|
||||
"with ToolboxClient(\"http://127.0.0.1:5000\") as client:\n",
|
||||
" search_tool = await client.aload_tool(\"search-hotels-by-location\")"
|
||||
]
|
||||
},
|
||||
{
|
||||
"cell_type": "markdown",
|
||||
"id": "95eec50c",
|
||||
"metadata": {},
|
||||
"source": [
|
||||
"## Invocation\n"
|
||||
]
|
||||
},
|
||||
{
|
||||
"cell_type": "code",
|
||||
"execution_count": null,
|
||||
"id": "8e99351b",
|
||||
"metadata": {},
|
||||
"outputs": [
|
||||
{
|
||||
"name": "stdout",
|
||||
"output_type": "stream",
|
||||
"text": [
|
||||
"[{\"id\":1,\"location\":\"Basel\",\"name\":\"Hilton Basel\",\"price_tier\":\"Luxury\"},{\"id\":3,\"location\":\"Basel\",\"name\":\"Hyatt Regency Basel\",\"price_tier\":\"Upper Upscale\"}]\n"
|
||||
]
|
||||
}
|
||||
],
|
||||
"source": [
|
||||
"from toolbox_langchain import ToolboxClient\n",
|
||||
"\n",
|
||||
"with ToolboxClient(\"http://127.0.0.1:5000\") as client:\n",
|
||||
" search_tool = await client.aload_tool(\"search-hotels-by-location\")\n",
|
||||
" results = search_tool.invoke({\"location\": \"Basel\"})\n",
|
||||
" print(results)"
|
||||
]
|
||||
},
|
||||
{
|
||||
"cell_type": "markdown",
|
||||
"id": "9e8dbd39",
|
||||
"metadata": {},
|
||||
"source": [
|
||||
"## Use within an agent\n",
|
||||
"\n",
|
||||
"Now for the fun part! We'll install the required LangChain packages and create an agent that can use the tools we defined in MCP Toolbox."
|
||||
]
|
||||
},
|
||||
{
|
||||
"cell_type": "code",
|
||||
"execution_count": null,
|
||||
"id": "9b716a84",
|
||||
"metadata": {
|
||||
"id": "install-packages"
|
||||
},
|
||||
"outputs": [],
|
||||
"source": [
|
||||
"%pip install -U --quiet toolbox-langchain langgraph langchain-google-vertexai"
|
||||
]
|
||||
},
|
||||
{
|
||||
"cell_type": "markdown",
|
||||
"id": "affda34b",
|
||||
"metadata": {},
|
||||
"source": [
|
||||
"With the packages installed, we can define our agent. We will use `ChatVertexAI` for the model and `ToolboxClient` to load our tools. The `create_react_agent` from `langgraph.prebuilt` creates a robust agent that can reason about which tools to call.\n",
|
||||
"\n",
|
||||
"**Note:** Ensure your MCP Toolbox server is running in a separate terminal before executing the code below."
|
||||
]
|
||||
},
|
||||
{
|
||||
"cell_type": "code",
|
||||
"execution_count": null,
|
||||
"id": "ddd82892",
|
||||
"metadata": {},
|
||||
"outputs": [],
|
||||
"source": [
|
||||
"from langgraph.prebuilt import create_react_agent\n",
|
||||
"from langchain_google_vertexai import ChatVertexAI\n",
|
||||
"from langgraph.checkpoint.memory import MemorySaver\n",
|
||||
"from toolbox_langchain import ToolboxClient\n",
|
||||
"\n",
|
||||
"prompt = \"\"\"\n",
|
||||
"You're a helpful hotel assistant. You handle hotel searching and booking.\n",
|
||||
"When the user searches for a hotel, list the full details for each hotel found: id, name, location, and price tier.\n",
|
||||
"Always use the hotel ID for booking operations.\n",
|
||||
"For any bookings, provide a clear confirmation message.\n",
|
||||
"Don't ask for clarification or confirmation from the user; perform the requested action directly.\n",
|
||||
"\"\"\"\n",
|
||||
"\n",
|
||||
"\n",
|
||||
"async def run_queries(agent_executor):\n",
|
||||
" config = {\"configurable\": {\"thread_id\": \"hotel-thread-1\"}}\n",
|
||||
"\n",
|
||||
" # --- Query 1: Search for hotels ---\n",
|
||||
" query1 = \"I need to find a hotel in Basel.\"\n",
|
||||
" print(f'\\n--- USER: \"{query1}\" ---')\n",
|
||||
" inputs1 = {\"messages\": [(\"user\", prompt + query1)]}\n",
|
||||
" async for event in agent_executor.astream_events(\n",
|
||||
" inputs1, config=config, version=\"v2\"\n",
|
||||
" ):\n",
|
||||
" if event[\"event\"] == \"on_chat_model_end\" and event[\"data\"][\"output\"].content:\n",
|
||||
" print(f\"--- AGENT: ---\\n{event['data']['output'].content}\")\n",
|
||||
"\n",
|
||||
" # --- Query 2: Book a hotel ---\n",
|
||||
" query2 = \"Great, please book the Hyatt Regency Basel for me.\"\n",
|
||||
" print(f'\\n--- USER: \"{query2}\" ---')\n",
|
||||
" inputs2 = {\"messages\": [(\"user\", query2)]}\n",
|
||||
" async for event in agent_executor.astream_events(\n",
|
||||
" inputs2, config=config, version=\"v2\"\n",
|
||||
" ):\n",
|
||||
" if event[\"event\"] == \"on_chat_model_end\" and event[\"data\"][\"output\"].content:\n",
|
||||
" print(f\"--- AGENT: ---\\n{event['data']['output'].content}\")"
|
||||
]
|
||||
},
|
||||
{
|
||||
"cell_type": "markdown",
|
||||
"id": "54552733",
|
||||
"metadata": {},
|
||||
"source": [
|
||||
"## Run the agent"
|
||||
]
|
||||
},
|
||||
{
|
||||
"cell_type": "code",
|
||||
"execution_count": null,
|
||||
"id": "9f7c199b",
|
||||
"metadata": {},
|
||||
"outputs": [],
|
||||
"source": [
|
||||
"async def main():\n",
|
||||
" await run_hotel_agent()\n",
|
||||
"\n",
|
||||
"\n",
|
||||
"async def run_hotel_agent():\n",
|
||||
" model = ChatVertexAI(model_name=\"gemini-2.5-flash\")\n",
|
||||
"\n",
|
||||
" # Load the tools from the running MCP Toolbox server\n",
|
||||
" async with ToolboxClient(\"http://127.0.0.1:5000\") as client:\n",
|
||||
" tools = await client.aload_toolset(\"hotel_toolset\")\n",
|
||||
"\n",
|
||||
" agent = create_react_agent(model, tools, checkpointer=MemorySaver())\n",
|
||||
"\n",
|
||||
" await run_queries(agent)\n",
|
||||
"\n",
|
||||
"\n",
|
||||
"await main()"
|
||||
]
|
||||
},
|
||||
{
|
||||
"cell_type": "markdown",
|
||||
"id": "79bce43d",
|
||||
"metadata": {},
|
||||
"source": [
|
||||
"You've successfully connected a LangChain agent to a local database using MCP Toolbox! 🥳\n",
|
||||
"\n",
|
||||
"## API reference\n",
|
||||
"\n",
|
||||
"The primary class for this integration is `ToolboxClient`.\n",
|
||||
"\n",
|
||||
"For more information, see the following resources:\n",
|
||||
"- [Toolbox Official Documentation](https://googleapis.github.io/genai-toolbox/)\n",
|
||||
"- [Toolbox GitHub Repository](https://github.com/googleapis/genai-toolbox)\n",
|
||||
"- [Toolbox LangChain SDK](https://github.com/googleapis/mcp-toolbox-python-sdk/tree/main/packages/toolbox-langchain)\n",
|
||||
"\n",
|
||||
"MCP Toolbox has a variety of features to make developing Gen AI tools for databases seamless:\n",
|
||||
"- [Authenticated Parameters](https://googleapis.github.io/genai-toolbox/resources/tools/#authenticated-parameters): Bind tool inputs to values from OIDC tokens automatically, making it easy to run sensitive queries without potentially leaking data\n",
|
||||
"- [Authorized Invocations](https://googleapis.github.io/genai-toolbox/resources/tools/#authorized-invocations): Restrict access to use a tool based on the users Auth token\n",
|
||||
"- [OpenTelemetry](https://googleapis.github.io/genai-toolbox/how-to/export_telemetry/): Get metrics and tracing from MCP Toolbox with [OpenTelemetry](https://opentelemetry.io/docs/)\n",
|
||||
"\n",
|
||||
"# Community and Support\n",
|
||||
"\n",
|
||||
"We encourage you to get involved with the community:\n",
|
||||
"- ⭐️ Head over to the [GitHub repository](https://github.com/googleapis/genai-toolbox) to get started and follow along with updates.\n",
|
||||
"- 📚 Dive into the [official documentation](https://googleapis.github.io/genai-toolbox/getting-started/introduction/) for more advanced features and configurations.\n",
|
||||
"- 💬 Join our [Discord server](https://discord.com/invite/a4XjGqtmnG) to connect with the community and ask questions."
|
||||
]
|
||||
}
|
||||
],
|
||||
"metadata": {
|
||||
"kernelspec": {
|
||||
"display_name": "Python 3",
|
||||
"language": "python",
|
||||
"name": "python3"
|
||||
},
|
||||
"language_info": {
|
||||
"codemirror_mode": {
|
||||
"name": "ipython",
|
||||
"version": 3
|
||||
},
|
||||
"file_extension": ".py",
|
||||
"mimetype": "text/x-python",
|
||||
"name": "python",
|
||||
"nbconvert_exporter": "python",
|
||||
"pygments_lexer": "ipython3",
|
||||
"version": "3.11.13"
|
||||
}
|
||||
},
|
||||
"nbformat": 4,
|
||||
"nbformat_minor": 5
|
||||
}
|
||||
@ -182,6 +182,10 @@ DATABASE_TOOL_FEAT_TABLE = {
|
||||
"link": "/docs/integrations/tools/cassandra_database",
|
||||
"operations": "SELECT and schema introspection",
|
||||
},
|
||||
"MCP Toolbox": {
|
||||
"link": "/docs/integrations/tools/toolbox",
|
||||
"operations": "Any SQL operation",
|
||||
},
|
||||
}
|
||||
|
||||
FINANCE_TOOL_FEAT_TABLE = {
|
||||
|
||||
@ -709,3 +709,7 @@ packages:
|
||||
repo: digitalocean/langchain-gradient
|
||||
downloads: 576
|
||||
downloads_updated_at: '2025-08-10T21:38:36.795416+00:00'
|
||||
- name: toolbox-langchain
|
||||
repo: googleapis/mcp-toolbox-sdk-python
|
||||
path: packages/toolbox-langchain
|
||||
|
||||
|
||||
Loading…
Reference in New Issue
Block a user
